Port of Villa Constitución
The port of Villa Constitución is located at KM 365 of the Paraná river. The terminals are the following:
Grain Elevator: this terminal is operated by Messrs. Servicios Portuarios S.A.; the premises consist of two berths that can accommodate panama size vessels. The south pier is presently not operative. Berthing and sailing maneuvers must be done on day light only and tug assisted. Storage capacity: about 235.00 mt. Loading rate: about 900 mt/hour.
Puerto Acevedo: is the Acindar port, located at KM 364/365 of the Paraná river. This iron mill has two berths. The raw material one, used for the iron ore discharge, is fitted with one gantry crane that discharge vessels at an a average rate of 450 mt/hour. Air draft restriction: 15 m. Maximum permitted l.o.a.: 270 m. The steel products berth can accommodate vessels up to 199,5 m l.o.a. and is fitted with two 12 mt swl cranes.
View Photos>>

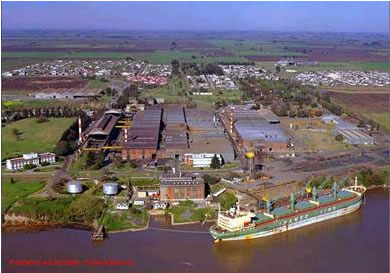

VILLA CONSTITUCIÓN PORT
GRAIN ELEVATOR
PUERTO ACEVEDO TERMINALES DE ACINDAR S.A.
x
1 - 3
<
>
Grain Elevator
this terminal is operated by Messrs. Servicios Portuarios S.A.; the premises consist of two berths that can accommodate panama size vessels. The south pier is presently not operative. Berthing and sailing maneuvers must be done on day light only and tug assisted.
AT PARANA RIVER
DRAFT (m) ALONGSIDE
DWT
LOA
BEAM
AIR DRAFT AT ZERO
SILO/WAREHOUSE CAPACITY
VEGOIL TANKS CAPACITY
LOADING RATE
GRAINS
VEGOILS
UNIT 2
KM 367
10,40
N/R
190
32,26
N/A
180000
N/A
600 T/HR
UNIT 3
KM 365
10,50
N/R
230
37
15
120000
20000
700 T/HR
400 T/HR
Puerto Acevedo
It is the Acindar port, located at KM 364/365 of the Paraná river. This iron mill has two berths. The raw material one, used for the iron ore discharge, is fitted with one gantry crane that discharge vessels at an a average rate of 450 mt/hour. Air draft restriction: 15 m. Maximum permitted l.o.a.: 270 m. The steel products berth can accommodate vessels up to 199,5 m l.o.a. and is fitted with two 12 mt swl cranes.
