PORT OF CAMPANA

Campana port area, located between Km 99 and KM 91 of the Paraná de las Palmas river, includes various terminals which, described geographically from West to East are the following:

TENARIS SIDERCA TERMINAL
EUROAMERICA TERMINAL
DEPSA
PAE TERMINAL
MARIPASA
CARBOCLOR
TTC TERMINAL
ODFJELL TAGSA
TAJIBER
PETROMINING

View Photos>>

LAYOUT CAMPANA

MARIPASA

ODFJELL/TAGSA

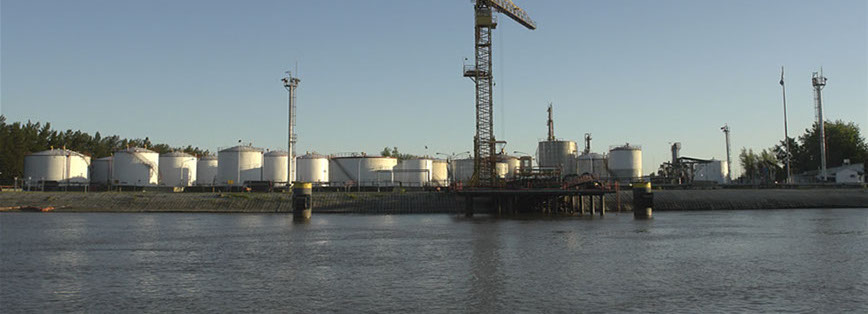

AXION ENERGY

AXION ENERGY - campana

AXION ENERGY- CAMPANA

x

1 - 6

<

>

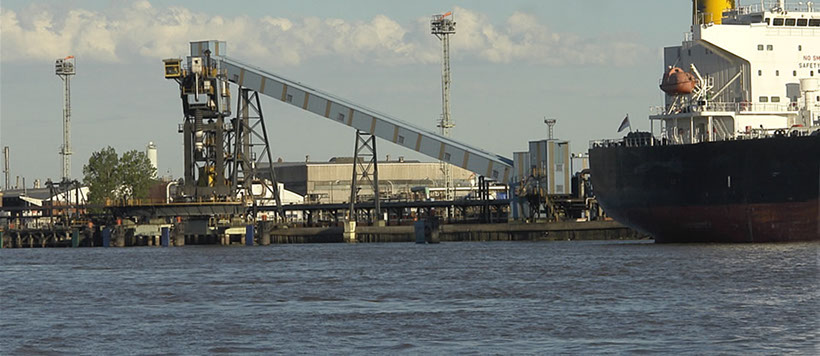

TENARIS SIDERCA TERMINAL CAMPANA

Owned and operated by Messrs. Tenaris Siderca, this terminal is basically an iron ore sicharge berth, The pier is fitted with a gantry crane that discharges to a hopper / conveyor belt system. Crane's outreach is about 22m.

AT PARANA RIVER:

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT AT ZERO:

DISCHARGE RATE:

LOADING RATE

KM 98,5

10,05mts

N/A

230

32

17

500 T/HR

500 MT/SHIFT

EUROAMERICA TERMINAL CAMPANA

This terminal consists of a multipurpose open berth designed for reefer cargo, wood/wood products and steel products load/discharge. They also operate with sugar and fertilizers. No cranes are available and vessel's gear is normally employed for loading/discharging operations. Eventually, mobile cranes can be hired. Water frontline length is 305m.

AT PARANA RIVER:

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT AT ZERO:

LOADING RATE:

DISCHARGE RATE:

KM 98

9,75

N/A

230 (or 2 vessels upto 200 m LOA)

N/A

DEPSA Terminal

Formerly knew AS National Wharf is an open berth with two Yokohama type rubber fenders. No cranes are available at this terminal. They work with steel products.

AT PARANA RIVER:

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT AT ZERO:

KM 97

9,14

N/A

178

N/A

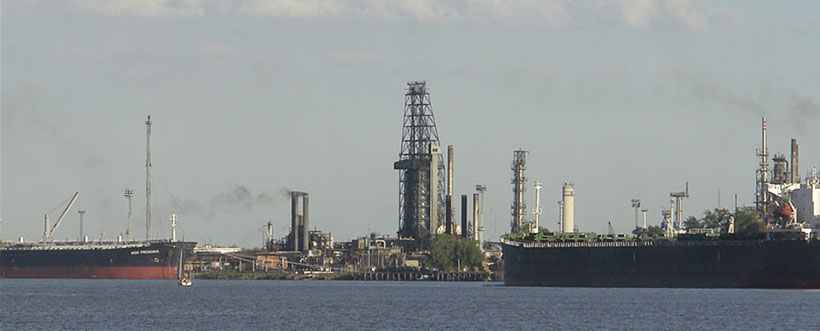

PAE TERMINAL

Pan American Energy refinery´s four berths, are used for the load/unload of petroleum/petroleum products and coal. The berth “H” is also employed for the loading of petcoke.

AT PARANA RIVER:

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT AT ZERO:

LOADING RATE:

DISCHARGE RATE:

BERTH C BERTH E BERTH G BERTH H

KM 96,5

9,15 9,20 5,50 10,37

60000 25000 10000 45000

230 169 110 230

38 32 25 30

400 m3/hr 400 m3/hr 400m3/hr 400m3/hr

400 m3/hr 400 m3/hr 400 m3/hr 400m3/hr

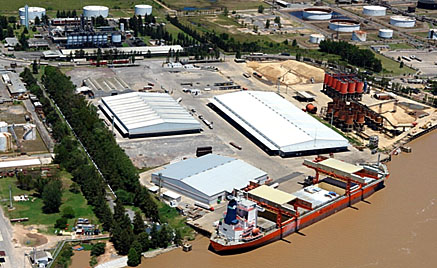

MARIPASA Terminal

This terminal is a multipurpose installation, now under lease to Messrs. Euroamérica, mainly employed for the loading/unloading of fruit, paper, salt, dry bulk cargoes, pipes and fertilizers. No cranes available at this terminal.

AT PARANA RIVER:

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT AT ZERO:

KM 95,8

10

60000

230

N/A

CARBOCLOR

Owned and operated by Messrs. Carboclor S.A. The work with petroleum and chemicals.

AT PARANA RIVER: KM 94,5

DRAFT (m) ALONGSIDE: 9,75

DWT: 60000

LOA: 220

BEAM: N/A

AIR DRAFT AT ZERO: N/A

STORAGE CAPACITY: 45000 CBM

LOADING RATE: 350 CBM/HR

DISCHARGE RATE: 350 CBM/HR

TTC Campana

AT PARANA RIVER: 94,5

DRAFT (m) ALONGSIDE: 9,75 mts

DWT: 65000

LOA: 230

BEAM: 35

AIR DRAFT AT ZERO:

STORAGE CAPACITY: 150.000 m3

LOADING RATE: 400 m3/hr

DISCHARGE RATE: 400 m3/hr

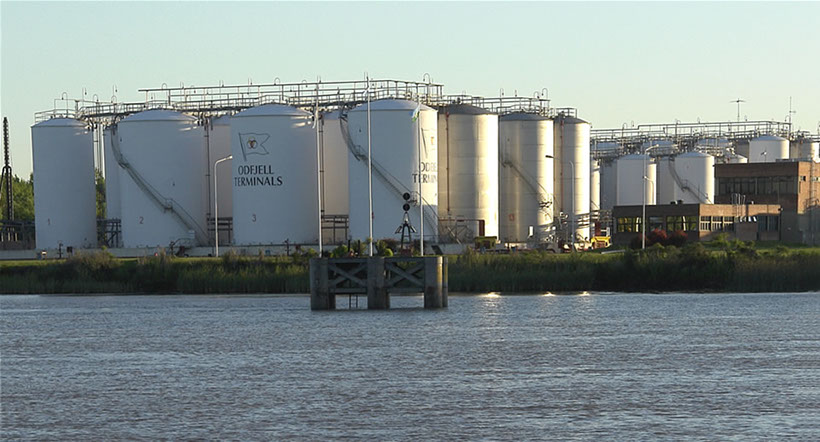

ODFJELL TAGSA CAMPANA

Owned and operated by Messrs. TAGSA S.A. The work with oils and chemicals.

AT PARANA RIVER:

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT AT ZERO:

STORAGE CAPACITY:

LOADING RATE:

DISCHARGE RATE:

KM 93

10,36

45000

230

32

N/A

68600 CBM

300 m3/hr

TAJIBER CAMPANA

This multipurpose installation is owned and operated by Messrs. Euroamérica S.A. It is mainly employed for the loading/unloading of general cargo, vehicles and containers.

AT PARANA RIVER:

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT AT ZERO:

STORAGE CAPACITY:

LOADING RATE:

DISCHARGE RATE:

KM 92

10

60000

230

N/A

PETROMINING Terminal

This multipurpose installation is owned and operated by Messrs. Petromining S.A. It is mainly employed for the loading/unloading of petroleum, petroleum byproducts and minerals.

AT PARANA RIVER:

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT AT ZERO:

TANK STORAGE CAPACITY:

MINERAL STORAGE CAPACITY:

LOADING RATE:MIN

DISCHARGE RATE:

KM 91

10,36
