Port of Bahía Blanca

The port is located close to the city of Bahia Blanca, on the southern Atlantic coast of the Buenos Aires province, on the northern side of the Bahía Blanca inlet. It is the second port in importance, regarding grain exports in Argentina, after San Lorenzo.

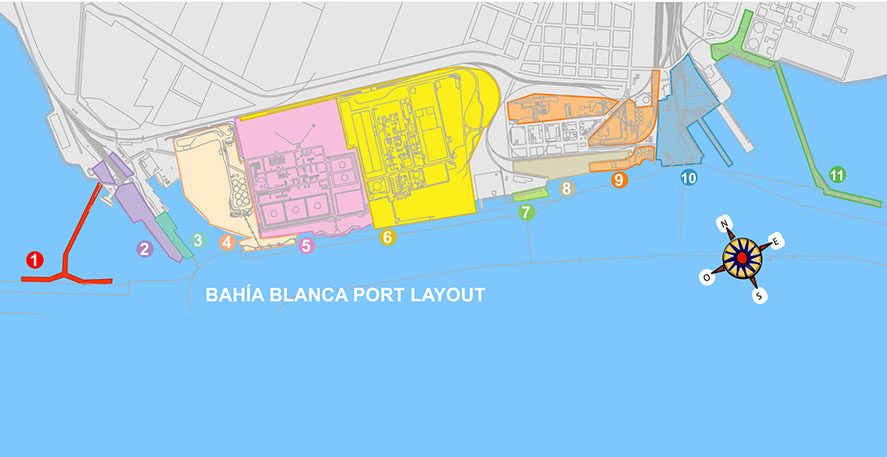

The port complex, that includes Ingeniero White and Puerto Galván ports, is managed by the Consorcio de Gestión del Puerto de Bahía Blanca. Puerto Rosales and Puerto Belgrano are also located in the Bahía Blanca inlet but they are not managed by the above mentioned company. Puerto Rosales is mainly used by pilot boats, small crafts and fishing vessels. Puerto Belgrano is the principal Argentine Navy base, which offers dry-docking facilities for commercial ships. The Bahía Blanca inlet also homes two SPM buoys, anchored close to Puerto Rosales, one off Punta Ancla and the other off Punta Cigueña.

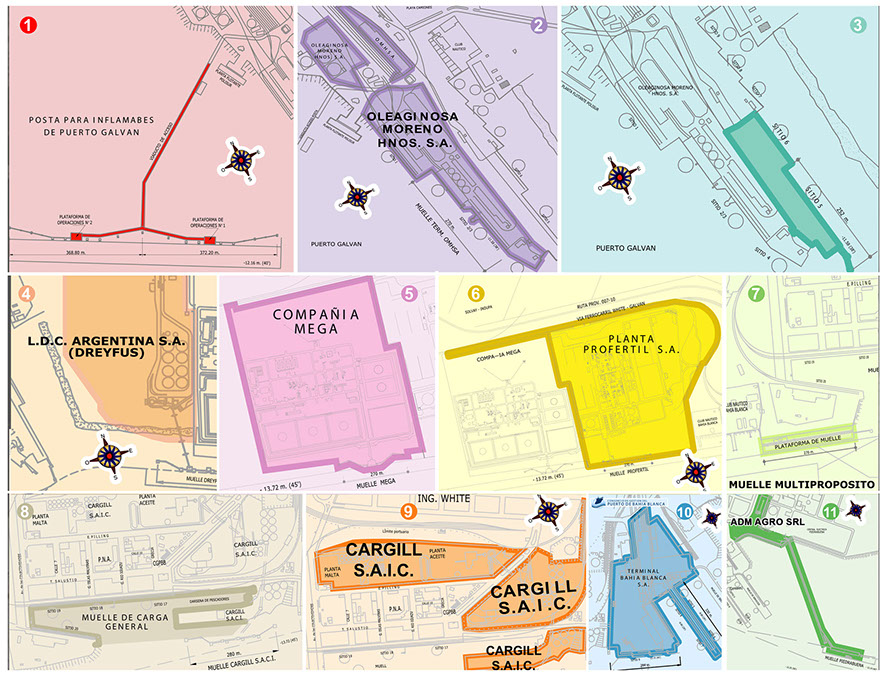

Ingeniero White:

• Comandante Piedrabuena Pier

• ADM AGRO SRL

• Terminal Bahía Blanca SA

• Cargill Terminal

• Profertil Terminal

Puerto Galván:

• Dreyfus Terminal

• Gelncore / Moreno Terminal PIER 2/3

• MEGA TERMINAL (LPG+LNG+GASOLINE)

• OIL TANKER/GAS CARRIER TERMINALS: PIERS NBR 1, 2 AND 3

12 - 19

COMANDANTE PIEDRABUENA PIER

Operated by: PAMPA ENERGIA, this terminal was built basically for the vessels carrying fuel and coal for the electric power mill of same name. In fact coal was never discharged as the pier discharger was never installed and is used for oil discharge and grain /grain products loading.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

TANKS CAPACITY:

TANKS:

LOADING RATE

FUEL OIL:

GRAINS:

13,10

N/R

250

N/R

N/A

60000 CBM

250 CBM

N/A

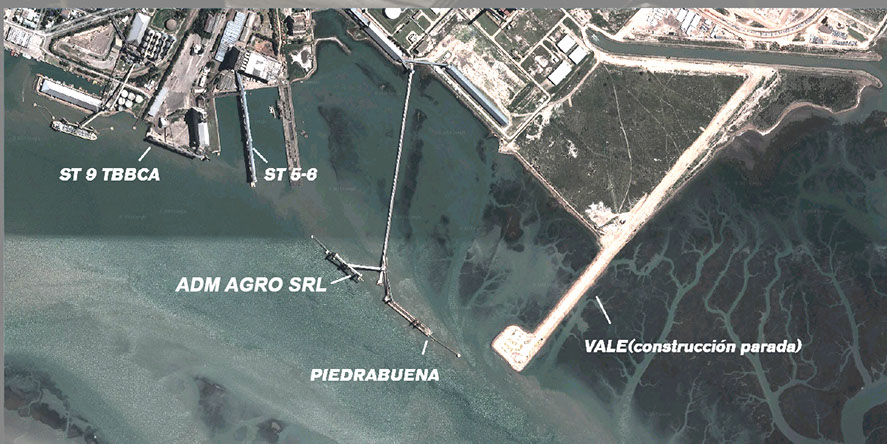

TERMINAL ADM AGRO SRL

Operated by: ADM AGRO, this terminal was built in 2014 modern construction. Berthing is at 3 interconnected dolphins; overall length 280 m. At overhead gallery 2 belts feed 3 multi directional loading arms fitted with adjustable trimmers. Cape size vessels load. Grain storage capacity 110.000 tons loadrate up to 1800/2000 TPH.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING SPOUTS / ARMS:

LOADING RATE

GRAINS:

13,90

N/R

270

N/R

110000

N/A

1800/2000 T/HR

TERMINAL BAHIA BLANCA S.A.

Operated by: BUNGE+ACA+COFCO: This terminal consists of three (3) berths for loading grain.

Elevator 3: Berth 5/6 adapted with 4 telescopic spouts, overall length 330 m, handy vessels. Max LOA 200m - Loadrate 350 TPH & Line.

Berth 7/8 actually out of order.

Elevator 5 Berth 9 adapted with feed 3 multi directional loading arms fitted with adjustable trimmers, (3 lines for loading) ,overall length 280 m, cape size vessels. Max LOA 266m. Loadrate 500/550 TPH & Line.

Grain storage capacity: 190.000 ton.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING SPOUTS / ARMS:

LOADING RATE

GRAINS:

BERTH 5/6 BERTH 9

14,70

N/R N/R

200 266

N/R N/R

190000

N/A N/A

4 3

1400 T/HR 1600 T/HR

TERMINAL CARGILL SACI.

Operated by CARGILL, this terminal is a modern construction. Berthing is at 3 interconnected dolphins; overall length 280 m. At overhead gallery 2 belts feed 3 multi directional loading arms fitted with adjustable trimmers. Cape size vessels load. Grain storage capacity 180.000 tons grains plus 50.000 by-products plus 75.000 barley plus 19.000 malt plus 29.500 shore tanks for Vegoils. Grains loadrate up to 1800/2000 T/HR and V/Oils loading rate upto 600/800 CBM/HR.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING RATE

GRAINS:

V/OILS:

13,80

N/R

270

N/R

284000

29500

1800/2000 T/HR

600/800 CBM/HR

TERMINAL PROFERTIL SA

Operated by PROFERTIL SA, this is a concrete pier built parallel to the channel between White and Galvan, about 200 m long allowing vessels of upto 235 m LOA with a loading arm receiving the bulk urea via belts from the storage areas. About halfway along the wharf there is a retractable loading arm for liquid ammonium/Gasoline. There is 1 loading arm fithed for gasoline from Mega Terminal.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING RATE

UREA:

LIQUID AMMONIUM:

13,90

N/R

235

N/R

105000

N/A

1250 T/HR

250 CBM

TERMINAL DREYFUS SA

Operated by. LDC ARG SA, this terminal was built in 2012 and is a modern construction. Berthing is at 3 interconnected dolphins with an overall length of 300 m, for cape size vessels load. At overhead gallery 2 belts feed 3 multi directional loading arms fitted with adjustable trimmers. Grain storage capacity 96.000 tons + 20.000 tons for malt (Malteria Pampa) with a loadrate up to 1800/2000 TPH.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING RATE

GRAINS:

MALT:

13,80

N/R

270

N/R

N/A

116000

1800/2000 T/HR

450/500 T/HR

TERMINAL GLENCORE / MORENO ELEVATOR: PIER 2/3

Operated by Glencore/Omhsa. Berth 2/3 adapted with 4 telescopic spouts (2 lines), overall length 270 m, for panamax size vessels.

Max LOA 240m / max beam 40m – max drafts: 12,80m sw Loadrate 800 TPH & Line for grain and 550 TPH & Line by-product.

Grain storage capacity: 49.000 ton. By-product 80.000 ton and vegoil 40.000 ton.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING RATE

GRAINS:

BY PRODUCTS:

V/OILS:

11,90

N/R

240

129000

40000

1500/1700 T/HR

550 T/HR

450 T/HR

MEGA TERMINAL (LPG+LNG+GASOLINE)

Operated by CIA MEGA, this concrete pier is also parallel to the channel (between PROFERTIL and DREYFUS TERMINALS). It is 270 m long for vessels upto 230 m LOA with 5 loading arms, 3 for propane and butane and the other two for gasoline.

Capacities: Propane: 70.000cmb+Butane: 35.000cmb+Gasoline: 30.000cbm

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT (m) AT ZERO:

TANKS CAPACITY

PROPANE:

BUTANE:

GASOLINE:

LOADING RATE

BUTANE+PROPANE:

GASOLINE:

13,80

75000

230

N/A

70000 CBM

35000 CBM

30000 CBM

1200 CBM/HR

1400 CBM/HR

OIL TANKER/GAS CARRIER TERMINALS: PIERS NBR 1, 2 AND 3

Operated by ENERGEN SA / CGPBBCA. Located immediately West of the Galván N°1 Berth is the Polisur floating petro-chemical plant and beyond that the viaduct running out to the tanker berths

(Posta N° 1 for oil tankers, Posta N° 2 for gas carriers) operated by CGPBBCA. Piping for these berths is carried from the shore along the viaduct and the jetty to the central loading platforms.

Usual shippers/receivers: AXION+TRAFIGURA+PANAMERICAN ENERGY+YPF.

POSTA NBR 1:

For tankers vessels, this berth consists of 4 berthing dolphins with central loading platforms of 31x21 m and outlying berthing dolphins giving an overall berth length of 371 m. Max LOA 250m.

2 arms of 10´ ANSI 150 - for black products. 2 arms of 10´ANSI 150 - for white products. 1 armd of 8´ANSI 300 - for EDC (ETHYLENE DICHLORIDE).

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT** (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING RATE

NAPHTHA+GASOIL:

FUEL OIL:

GASOLINE:

12,20

65000

230

N/A

16,50

N/A

250 CBM/HR

230 CBM/HR

** DEPENDING ON ARM

POSTA NBR 2:

For LPG/Ethylene vessels, this berth consists of 4 berthing dolphins with central loading platforms of 31x21 m and outlying berthing dolphins giving an overall berth length of 368 m. Max LOA 250m.

1 arm of 6/8´ ANSI 300- for Ethylene. 2 arms of 18´ANSI 300 – for LPG ambient / gasoline. 1 armd of 6´ANSI 150 - for VCM. 2 arms of 10´ANSI 300 LPG Refrigerated.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT** (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING RATE

BUTANE + PROPANE (AMBIENT):

BUTANE + PROPANE (REFRIGERATED):

CAUSTIC SODA:

12,30

75000

230

N/A

16,50

N/A

1000 CBM/HR

300 CBM/HR

450 CBM/HR

** DEPENDING ON ARM

POSTA NBR 3:

Operation of gasoil vessels for Central Termoelectrica Guillermo Browm. This berth consists of 4 berthing dolphins with central loading platforms of 31x21 m and outlying berthing dolphins giving an overall berth length of 368 m. Max LOA 250 m.

1 arms of 6/8´ ANSI 300- for Ethylene. 2 arms of 18´ANSI 300 – forLPG ambient / gasoline. 1 armd of 6´ANSI 150 - for VCM Vinyl Chloride Monomer). 2 arms of 10´ANSI 300 LPG Refrigerated.

DRAFT (m) ALONGSIDE:

DWT:

LOA:

BEAM:

AIR DRAFT** (m) AT ZERO:

SILO/WAREHOUSE CAPACITY:

VEGOIL TANKS CAPACITY:

LOADING RATE

BUTANE + PROPANE (AMBIENT):

BUTANE + PROPANE (REFRIGERATED):

CAUSTIC SODA:

12,30
